Build A Map Plate

Pro Feature: This tutorial uses features that require a commercial license. See https://github.com/milos-agathon/forge3d#license. You can read and learn from the code, but the highlighted functions will raise LicenseError without a valid key.

MapPlate is the composition layer above the live viewer. It takes an RGBA map image and adds cartographic furniture such as a title, legend, scale bar, north arrow, and insets. The expected output below is the gallery render produced by scripts/regenerate_gallery.py.

This example keeps the source image on the main viewer path by taking a snapshot first, then composing the plate from that RGBA output.

Compose a plate

from pathlib import Path

import numpy as np
from PIL import Image

import forge3d as f3d

dem_path = f3d.fetch_dem("rainier")
snapshot_path = Path("plate-source.png")

with f3d.open_viewer_async(
    terrain_path=dem_path,
    width=900,
    height=560,
) as viewer:
    viewer.set_z_scale(0.1)
    viewer.set_orbit_camera(phi_deg=28, theta_deg=49, radius=5400, fov_deg=42)
    viewer.set_sun(azimuth_deg=315, elevation_deg=30)
    viewer.snapshot(snapshot_path, width=900, height=560)

map_rgba = np.asarray(Image.open(snapshot_path).convert("RGBA"), dtype=np.uint8)

bbox = f3d.BBox(west=-122.0, south=46.7, east=-121.6, north=46.95)
domain = (0.0, 4000.0)

legend = f3d.Legend.from_colormap(
    f3d.get_colormap("terrain"),
    domain=domain,
    config=f3d.LegendConfig(title="Elevation", label_suffix=" m"),
)

meters_per_pixel = f3d.ScaleBar.compute_meters_per_pixel(bbox, image_width=map_rgba.shape[1])
scale_bar = f3d.ScaleBar(meters_per_pixel, config=f3d.ScaleBarConfig(units="km"))
north_arrow = f3d.NorthArrow(f3d.NorthArrowConfig(style="compass", size=72))

plate = f3d.MapPlate(f3d.MapPlateConfig(width=1600, height=1000))
plate.set_map_region(map_rgba, bbox)
plate.add_title("Mini DEM Plate", font_size=28)
plate.add_legend(legend.render())
plate.add_scale_bar(scale_bar.render())
plate.add_north_arrow(north_arrow.render())
plate.export_png("map-plate.png")

Gallery-backed script

The published map plate comes from render_10_map_plate() inside scripts/regenerate_gallery.py. That flow first calls examples/terrain_viewer_interactive.py to render the base terrain image, then composes the plate in Python with MapPlate, Legend, ScaleBar, and NorthArrow.

Notes

• MapPlate works with any RGBA image, including viewer snapshots.

• Legend, ScaleBar, and NorthArrow are separate renderers so you can customize them independently.

• For real-world products, use the actual map bounds and image width when computing meters_per_pixel.

• If you want the exact published output, compare against Map Plate.

Next: 3D Buildings

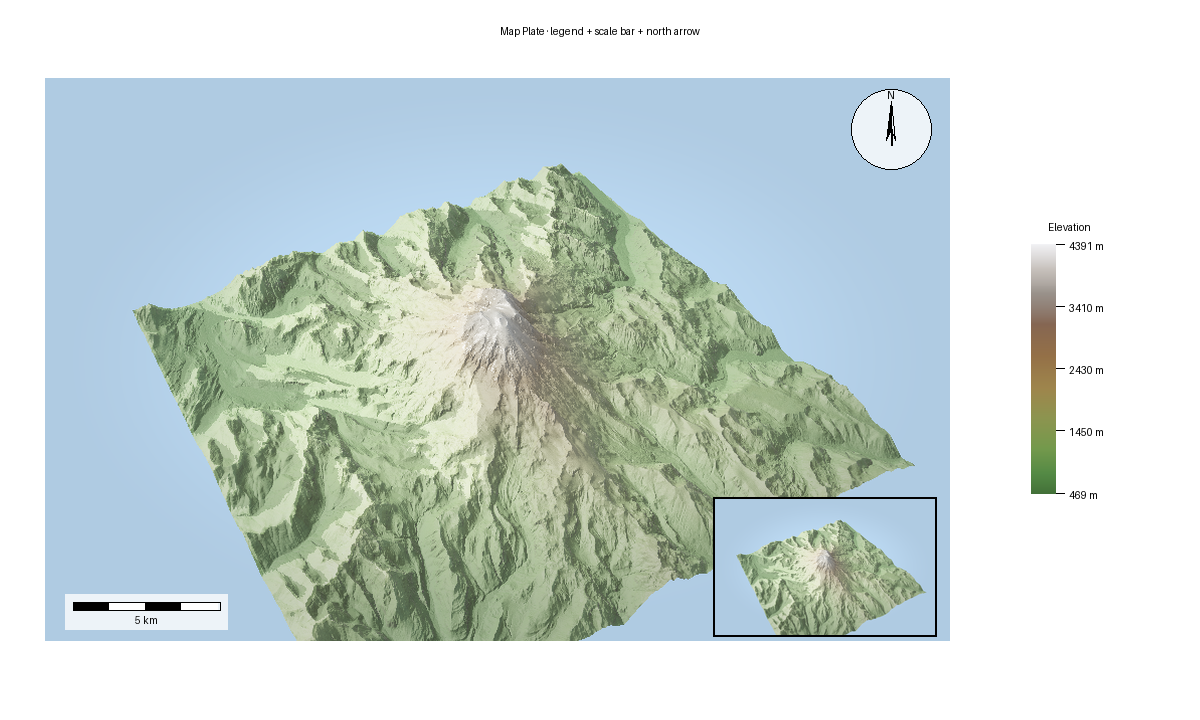

Expected output
