Vector Export

Pro Feature: SVG and PDF export require a commercial license. See https://github.com/milos-agathon/forge3d#license

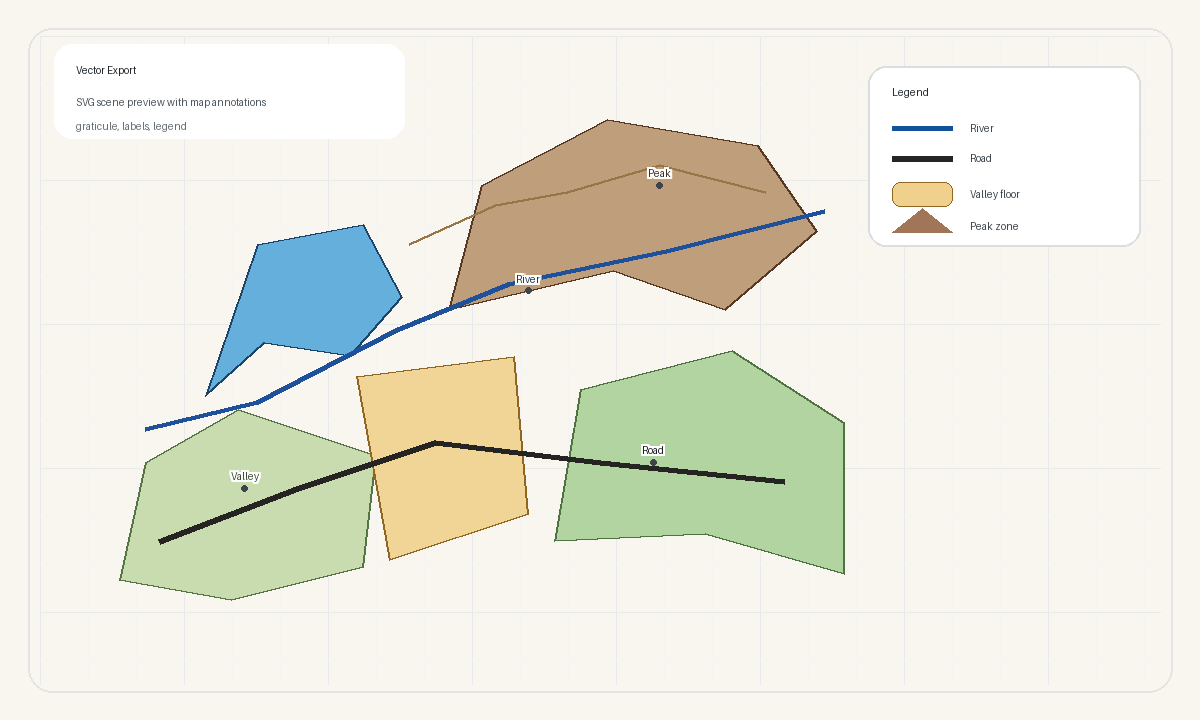

Vector export preview

Not every final output needs to stay in the raster viewer. forge3d.export covers clean 2D vector deliverables.

Ingredients

forge3d.VectorScene
forge3d.export_svg()
forge3d.export_pdf()

Sketch

import forge3d as f3d

scene = f3d.VectorScene()
scene.add_polygon([(0, 0), (100, 0), (80, 70), (10, 90)], fill_color=(0.2, 0.5, 0.85, 0.9))
scene.add_polyline([(5, 10), (40, 35), (90, 60)], stroke_color=(0.1, 0.1, 0.1, 1.0), stroke_width=2.5)
scene.add_label("Ridge", position=(55, 52))
f3d.export_svg(scene, "overlay.svg", width=1200, height=800)
